Causal mechanisms of subpolar gyre variability in CMIP6 models

The subpolar gyre is at risk of crossing a tipping point under future climate change associated with the collapse of deep convection. As such, tipping can have significant climate impacts; it is important to understand the mechanisms at play and how they are represented in modern climate models. In this study, we use causal inference to investigate the representation of several proposed mechanisms for subpolar gyre variability in CMIP6 models. As expected, an increase in sea surface salinity or a decrease in sea surface temperature leads to an increase in mixed layer depth in nearly all CMIP6 models due to an intensification of deep convection. However, the effect of convection on modifying sea surface temperature due to re-stratification is less clear. In most models, the deepening of the mixed layer caused by an increase in sea surface salinity does result in a cooling of the water at intermediate depths. The feedback from the subsurface temperature through density to the strength of the subpolar gyre circulation is more ambiguous, with fewer models indicating a significant link. Those that do show a significant link do not agree on its sign. The CMIP6 models that have the expected sign for the links from density to the subpolar gyre strength and from there to sea surface salinity are also the models in which abrupt shifts in the subpolar gyre region have been found in climate change scenario runs. One model (CESM2) contains all proposed mechanisms, with both a negative and a delayed positive feedback loop being significant.

1 Introduction

The North Atlantic Subpolar Gyre (SPG) is considered one of the tipping elements in the climate system (Lenton et al., 2023; Loriani et al., 2025). SPG tipping refers to a decadal (or longer) shutdown of convection in the interior of the SPG and a drastic weakening of the baroclinic part of the SPG circulation. Support for such tipping behaviour comes from paleoclimate reconstructions, in particular from high-resolution bivalve data from the North Icelandic shelf. These data indicate two episodes of SPG tipping prior to the Little Ice Age (Arellano-Nava et al., 2022), where both events appear to be driven by freshwater input, for example through the melting of the Greenland Ice Sheet during the preceding Medieval Climate Optimum. A temporary shutdown of convection has also been observed during the Great Salinity Anomalies in the historical period, but these lasted only a few years before convection restarted (Gelderloos et al., 2012; Kim et al., 2021).

Multiple studies have shown the possibility of an abrupt change in (sea) surface temperature in the SPG region in CMIP models (Sgubin et al., 2017; Swingedouw et al., 2021), which, in several models, coincides with a reduction in the mixed layer depth (and thus convection). More recently, a collapse of convection and corresponding cooling in the subpolar North Atlantic was found in CESM2 large ensemble scenario simulations of the near future (Gu et al., 2024). These model studies show the possibility of abrupt temperature shifts in the SPG region, likely already at low levels of global warming, with substantial climate impacts. It is hence of key importance to understand the mechanisms responsible for the temperature shifts in these models and in observations.

The physical processes determining the SPG are quite well known. The baroclinic part of the SPG circulation consists of an alongshore flow driven by a cross-shore density gradient between the buoyant boundary current and the dense interiors of the SPG's marginal seas (i.e. the Labrador and Irminger Seas). On an annual mean timescale, the buoyancy loss to the atmosphere in these interiors is balanced by buoyancy gain through lateral eddy fluxes originating from the boundary current (Spall, 2004). Higher salinities in the boundary current result in stronger lateral eddy transport and therefore more vigorous convection in the interior. This cools the water column at mid-depth, which strengthens the cross-shore density gradient and hence the baroclinic flow, which in turn increases the shedding of eddies from the boundary current, thereby enhancing the lateral transport in a positive feedback (De Steur et al., 2018; Holliday et al., 2020). Additionally, more heat is transported by the eddies, leading to a negative feedback, but these temperature anomalies are quickly damped by the atmosphere. The box model by Born and Stocker (2014) captures these processes in a simplified way and shows that convective and non-convective states, and hence bistability, can exist under the forcing over a substantial part of the parameter space.

However, in CMIP6 models, the boundary currents in the SPG's marginal seas are not well represented, and the eddy fluxes of heat and salt are highly parameterised. In addition, CMIP6 models have biases in their representation of convection, with convection happening too often, too deep, and not in the right location in many models (Heuzé, 2021). Hence, it is not guaranteed that transitions such as those described by Born and Stocker (2014) could be captured in these models, and, if not, how temperature shifts associated with changes in SPG convection are caused in some of the models (Sgubin et al., 2017; Swingedouw et al., 2021).

In CMIP6 models, deep convection is driven locally by vertical density differences and occurs when the surface density exceeds that of the waters below. Density is controlled by both temperature and salinity, so either an increase in sea surface salinity (SSS) or a decrease in sea surface temperature (SST) can lead to convection, deepening the mixed layer depth (MLD). These two causes can be represented as in Fig. 1 by the orange and brown (A₁) arrows in the yellow box. It is still a topic of debate as to which of the two (SST or SSS) is more important for driving variability in convection, and the results differ depending on the timescales of interest. Some studies indicate that SSS is the dominant driver of convection (e.g. Hátún et al., 2005; Gelderloos et al., 2012; Yamamoto et al., 2020), where changes in salinity are primarily linked to ocean transport. Others show the importance of surface heat fluxes, which affect SST, in the strength of convection (e.g. Yashayaev and Loder, 2016; Piron et al., 2017). On interannual timescales, SSS is a stronger driver than SST (e.g. Yamamoto et al., 2020).

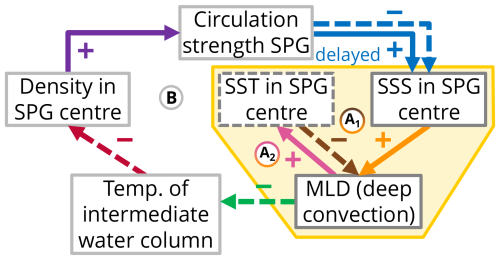

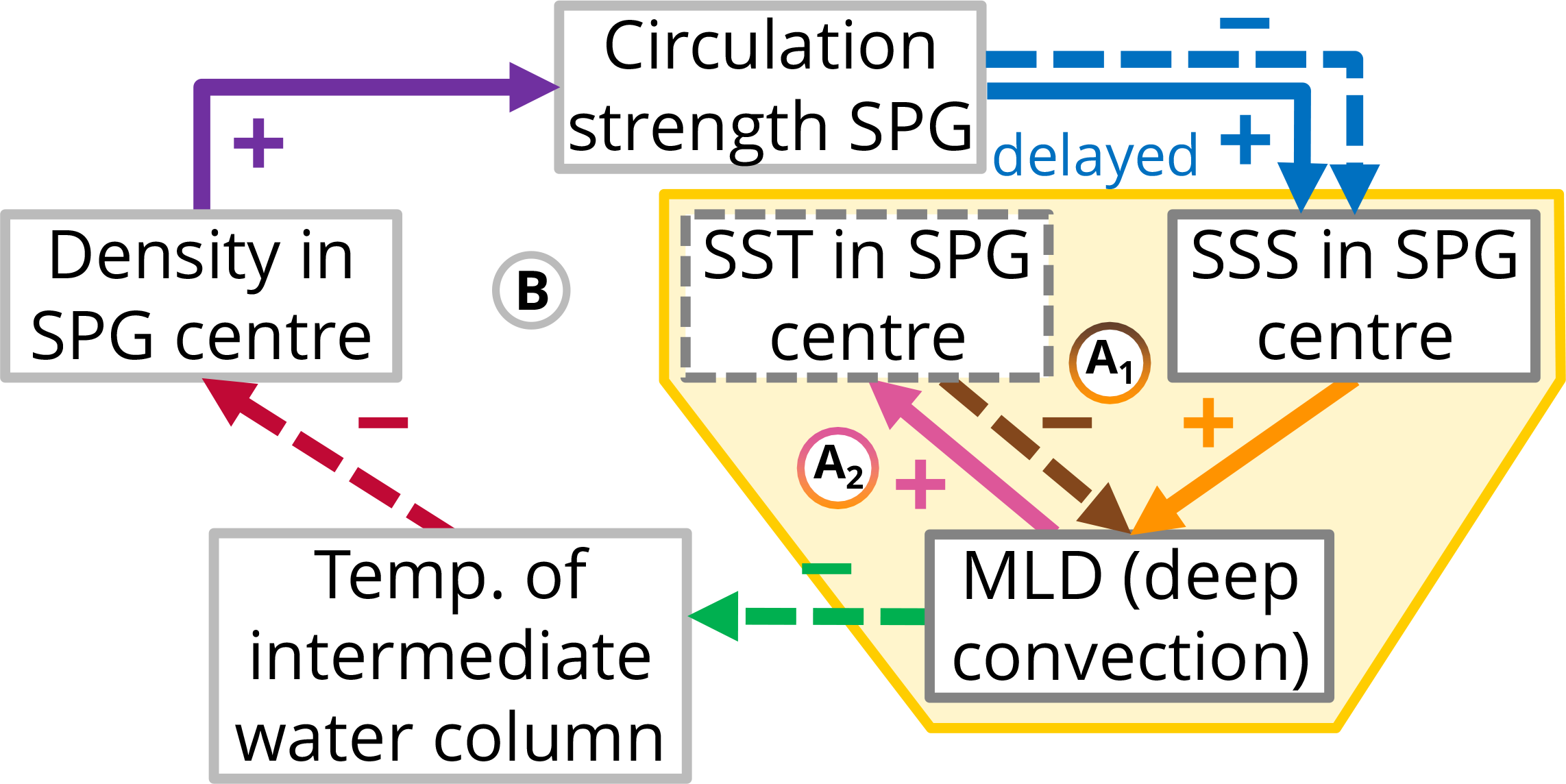

Figure 1 In the yellow box, two mechanisms for the interaction between SST, SSS, and MLD are shown. Mechanism (A₁) represents both SSS and SST impacting MLD, whereas mechanism (A₂) has SSS as the main driver of MLD, which in turn feeds back to SST. In the larger loop (B), the mechanism leading to bistability of the subpolar gyre, following Born and Mignot (2012), is depicted. The dashed box around SST indicates that it is not part of the mechanism (B). The arrows indicate a directional link between two variables, with a solid line indicating a positive effect and a dashed line indicating a negative one. For most links, the feedback is expected to be relatively fast, either instantaneous or with a lag of up to 2 years. The delayed positive feedback from SPG to SSS is due to eddy transport and is expected to have a lag of 5–10 years.

Convection also feeds back to the surface as warmer water from depth is mixed with the surface water, lowering the surface density. The effect of this re-stratification on temperature has been found to be significant, whereas the effect on salinity is not as strong (Lazier et al., 2002). This can lead to bistability of convective and non-convective states, as shown in conceptual models (Welander, 1982), and is represented by the orange and pink (A₂) arrows in Fig. 1. Even without detailed marginal sea process representations in CMIP6 models, the density in the SPG region affects the strength of the (horizontal) gyre circulation, which in turn alters SST and SSS. In this way, changes in convection can alter the strength of the SPG circulation, providing a possible feedback loop (Born and Mignot, 2012).

According to this mechanism depicted by the large feedback loop (B) in Fig. 1, a stronger gyre circulation leads to a reduction in salinity in the SPG centre on short timescales (up to 2 years) but an increase on longer timescales (5–10 years) due to eddy transport. An increase in sea surface salinity leads to convection and thus an increase in mixed layer depth on timescales of up to 2 years. This mixing brings cold surface water down, reducing the temperature of the intermediate water column and increasing the density at depth. In Born and Mignot (2012), the link from MLD to the temperature of the intermediate water column has a lag of around 7 years, and the reason given for this lag is the thermal inertia of the water column. This suggests that the effect itself likely occurs on shorter timescales and is sustained by the memory of the water column. Therefore, we refrain from specifying its lag in Fig. 1 and hypothesise that it is shorter than 7 years. Lastly, the increase in density in the centre of the gyre leads to a strengthening of the circulation through thermal wind balance. Taking the links together, the mechanism, represented by the blue, orange, green, red, and purple arrows in Fig. 1, consists of a negative feedback loop on short timescales and a positive one on longer timescales.

The aim of this study is to investigate the mechanisms of SPG tipping behaviour in CMIP6 models using a causal analysis. The causal framework (Runge, 2018) allows us to account for possible confounding factors and the effect of memory. The starting point of this analysis consists of the three potential mechanisms, as shown in Fig. 1. In the next section, we begin with a description of the CMIP6 data used, followed by a description of the causal methodology. In Sects. 3 and 4, the results are discussed, showcasing how different models perform in representing the different mechanisms ((A) and (B)). We end the paper with a discussion of the results and an outlook.

2 Data and methods

To verify the hypothesised mechanisms in CMIP6 models, two things are required. Firstly, indices for each of the variables shown in Fig. 1 are required, which are discussed in Sect. 2.1. Secondly, we need a method to identify the mechanism that describes the interactions between these indices. For this, causal inference is used, which is discussed in Sect. 2.2.

2.1 Data

To test for the presence of a mechanism in CMIP6 data, it is desirable that as few confounding or forcing mechanisms as possible are present. Therefore, the piControl runs of CMIP6 are considered (Eyring et al., 2016). The variables of interest in the CMIP6 database are the sea surface salinity (sos), sea surface temperature (tos), mixed layer depth (mlotst), subsurface potential temperature (thetao), and the barotropic streamfunction (msftbarot). The sea surface temperature and sea surface salinity are used to compute the density, following the TEOS-10 equation of state (Roquet et al., 2015). The barotropic streamfunction is used as a measure of the strength of the subpolar gyre because it is difficult to determine the baroclinic part of the flow, and the use of density variables for this purpose would build in a link between density and the gyre strength. With these five variables, we compute (scalar) time series for all six feedback elements shown in Fig. 1. The regions used for this computation are detailed in the following paragraphs. For the temperature at intermediate depth, we take into account depth levels between 50 and 1000 m (as in Born and Mignot, 2012). From here on, we use SPG for the strength of the subpolar gyre, SSS for the sea surface salinity, SST for the sea surface temperature, MLD for the mixed layer depth, SubT for the temperature at intermediate depth, and Rho for the density. For the mechanisms (A) linked to convection, we consider all 47 CMIP6 models for which at least 100 years of data are available (list in Fig. 2). Not all of these models have the barotropic streamfunction available as a variable, and thus we are left with 32 models for the analysis of mechanism (B) (see Table S1 in the Supplement for the list).

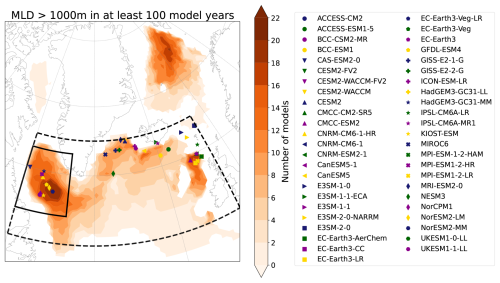

Figure 2 The markers indicate the locations in the subpolar gyre region (dashed box) where the winter (JFM) mean mixed layer depth reaches its maximum for each of the 47 CMIP6 models studied. Note that not all markers are visible due to overlapping maxima, mostly because model families have their maxima in the same location (e.g. for CanESM5-1, the location is the same as that for CanESM5). The shading shows the number of models (out of the 32 used to study the Born hypothesis) in which the mixed layer depth exceeds 1000 m in at least 100 model years (out of 500). The black box indicates the region 54–63° N, 47–60° W, chosen as the location where convection takes place in most CMIP6 models.

Because of the colder temperatures and resulting lower surface density, convection primarily occurs in winter (Birol Kara et al., 2003; Heuzé, 2017). Therefore, we focus our analysis on the winter months and compute the mean of each variable over January–February–March. Convection is a local process, and the location where it is strongest differs between CMIP6 models, as can be seen in Fig. 2. For the initial analysis of the mechanisms of convection (A), we therefore select a different region for each model to compute the SSS, SST, and MLD indices. For each model, a 5°×5° box around the location of maximum winter (JFM) mixed layer depth is obtained (restricted to the SPG region as indicated by the dashed line), and the indices are computed as the spatial average over those boxes. This ensures that for each model we focus on the region where that model has the strongest convection.

For the analysis of the Born hypothesis (B), one of the relevant variables is the barotropic streamfunction, as an indicator of the strength of the subpolar gyre. The interaction between the strength of the circulation and the temperature and salinity of the water differs between locations, since the water flowing into the considered region has a different source and thus different properties. This makes it difficult to compare models when using a separate local box for each model. Therefore, we decided to work with one fixed box for all models when studying this mechanism. The region studied was chosen based on where convection takes place in CMIP6 models. For this, we consider MLD as an indicator, assuming deep convection takes place if it exceeds 1000 m (Marshall and Schott, 1999). In Fig. 2, the number of models in which deep convection takes place during at least 100 model years is shown. It indicates that the Labrador Sea is the region in the subpolar gyre where deep convection takes place in most models. Therefore, the region considered in this study is 54–63° N, 47–60° W, indicated by the solid box in Fig. 2. The spatial average over this box is computed for all variables considered. Despite not all models showing (deep) convection in this region, this approach does allow for a better comparison of mechanism (B) between models because of the inclusion of the strength of the subpolar gyre. Note that the convection mechanisms (A) are considered local for each model, while mechanism (B) is studied over the whole Labrador Sea area.

2.2 Causal links and causal effect

To verify whether the convection and Born mechanisms are represented in CMIP6 models, we analyse the interaction between variables in two ways for each model. Firstly, causal inference is used to identify whether a connection between two variables is significant (at the 5 %-level). Secondly, causal effect analysis determines the strength of each link, given a network of links. Both approaches are conducted using the Tigramite package for Python. For the identification of significant links, the Peter and Clark momentary conditional independence (PCMCI) algorithm is used (Runge et al., 2014, 2019a, b). This is a causal discovery algorithm that identifies significant causal links between the input variables for a given set of lag-times. Several versions of the algorithm have been developed, of which we use PCMCI+ because it can assign a direction to instantaneous (no lag) links (Runge, 2020).

The PCMCI algorithm allows us to infer causal links between variables from time series data. Following Pearl et al. (2016), a variable X causes Y if $P\left[Y\right|\mathrm{do}(X=x)]$ is non-zero, where X is called the parent, Y is called the child, and do(*) is an intervention. In an experimental setting, such as a wave tank, an intervention could be to alter the frequency of the forcing to study the effect on wave height. However, in reality, such interventions, i.e. do(*), are not possible, and in high-resolution climate models, they are computationally too expensive and hence infeasible. Thus, for the time series data that are available, a time-lag is used to infer causality, assuming that the cause happens prior to the effect. This estimation of the links by the algorithm requires a number of assumptions to be valid, for which a full description is given in Runge (2018). Here, we briefly discuss the ones that are most relevant to this study.

Firstly, causal sufficiency is assumed. This means that all causally relevant variables are included, and there exist no other (unobserved) variables that influence a pair of variables in the considered set. Secondly, the set of causal links is assumed to be stationary, in the sense that the presence and strength of the links do not change in time. The last assumption we mention here is linearity of the links, which, strictly speaking, is unlikely to be valid. There are multiple metrics that can be used in the algorithm, but the more non-linear they get, the longer it takes to compute, making them unfeasible for our application to many models. Furthermore, linearity has been shown to be a good first order approximation for climate data (Kretschmer et al., 2021; Di Capua et al., 2020). Therefore, we use partial correlation as our metric, extending the commonly used framework of correlation by taking into account the effect of autocorrelation and (included) confounding factors (Saggioro and Shepherd, 2019). To be specific, we use a robust partial correlation measure (RobustParCorr), which is more suitable for non-Gaussian data. This choice is made because the mixed layer depth does not follow a Gaussian distribution in most models.

For the second step in the analysis of CMIP6 models, the strength of the links in the network is determined. As a measure of the link strength, the causal effect from one variable to another is determined using the causaleffect class of the Tigramite package, which, in its basis, performs a conditional regression analysis (Runge, 2021). To compute the causal effect of variable X on Y, one regresses Y on X, conditional on all other parents of Y (given the network). Those other parents are the history of Y itself (as far back as is significant), other driving variables Z, and possibly the history of X. Given the hypothesised networks, as shown in Fig. 1, in most cases, the conditioning is solely done on the history of both X and Y, as far back as found to be significant in the causal inference step. Only for mechanism (A₁) does one also condition on the other parent (SST or SSS).

3 Mechanisms of convection

We start by studying the two (local) convection mechanisms (A) represented in Fig. 1. Because of the close relationship between SSS and SST, causal inference struggles to identify the expected links, especially for instantaneous interactions, where there is a large spread between models (see Fig. S1 in the Supplement). For example, in many models, a causal link between SST and SSS is identified due to the absence of common drivers, such as the circulation strength of the gyre. Not including these possible drivers means that the assumption of causal sufficiency is violated, making it impossible to robustly identify the presence of links in the models. Therefore, we limit our analysis to the computation of the causal effects between the variables. The causal effects between the variables are obtained by using the links for mechanisms (A₁) and (A₂) as shown in Fig. 1. We consider both links in (A₁) to be instantaneous, while for (A₂) we take the SSS→MLD link at lag-0 and the MLD→SST link at lag-1 because of the slower effect of re-stratification (see also Fig. S1). Furthermore, we assume a lag-1 memory effect of each of the variables on itself, which is a feature clearly identified in most models using causal inference. This part of the analysis may be hindered by the violation of causal sufficiency as well, but it can still provide valuable insight into the local interaction mechanisms.

The results for this analysis of causal effects are shown in Fig. 3. For mechanism (A₁), we find that indeed an increase in SSS leads to more convection, i.e. an increase in MLD. A decrease in SST has the same effect, although it is slightly weaker in most models. The results for mechanism (A₂) are less pronounced. In most models, an increase in SSS causes an increase in MLD, although the effect is weaker than that in (A₁). The difference with (A₁) arises because in the computation of the causal effect, one conditions on all parents of MLD; in the case of (A₁), those are SST and MLD at lag-1, whereas in the case of (A₂) it is only MLD at lag-1. The identified feedback from MLD to SST is not in line with the theory, with most models indicating a negative causal effect. This is likely due to confounding factors (violating causal sufficiency), such as the ocean circulation, which also strongly impact SST (and SSS) and thereby obscure the signal. The reason this affects hypothesis (A₂) and not (A₁) is that in (A₂), SST is a child of SSS (through MLD). In (A₁), such a relation is absent and thus confounding factors, i.e. parents of both SST and SSS, do not impact the results. Thus, in order to be able to identify a robust and reliable signal, we require the hypothesis to be causally sufficient, by which we mean a hypothesis where all relevant variables are included. One hypothesis for SPG variability that is causally sufficient is the mechanism (B) shown in the large loop in Fig. 1. It includes all variables relevant to bistable variability of the SPG and thus can be tested using causal inference. This does not mean that the mechanism in reality is not affected by confounding factors but that the hypothesised mechanism is not and thus can be tested. Adding, for example, only the strength of the subpolar gyre to the local analysis of convection processes discussed here would lead to results that are hard to interpret, since the location of deepest convection differs strongly between models (as discussed in Sect. 2.1).

Figure 3 The causal effect for convection mechanisms (A₁) and (A₂) as shown in Fig. 1. Here, both links in (A₁) and the SSS→MLD link in (A₂) are considered at lag-0, while the MLD→SST link in (A₂) is considered at lag-1. The violins show the distribution across all models, with the dots representing individual model values.

4 Mechanism of subpolar gyre variability

The verification in CMIP6 models of the hypothesised mechanism (B), as shown in Fig. 1, is done in two steps. Firstly, causal inference is used to find which of the links are significant, which is done by studying one link X→Y at a time. This means we apply causal discovery to X, Y, and the causing variable Z of X (Z→X), accounting for its possible impact on autocorrelation, to verify the significance of the links. It is unlikely that all models agree on which links in the theoretical model are significant at which lags, and thus we start with a discussion of the number of models in which the links are found to be significant in Sect. 4.1. Based on these results we move to the second step: computation of the causal effect. For this, we set the lags in the network as found in Sect. 4.1 and use this to test the strength of the links (Sect. 4.2). Note that the computations here are done for the variables considered in the Labrador Sea box, as shown in Fig. 2, which is different from the model-dependent areas considered before. Comparison between the two regions shows no significant differences in the causal effects for the SSS→MLD link in the convection mechanisms (see Fig. S3 in the Supplement), indicating this interaction can also be identified when considering the same Labrador Sea region for all models.

4.1 Significant links

The number of models for which each of the five links is significant is shown in Fig. 4 for lags up to 10 years. Results for both the theoretical links (bottom row) and the influence of variables on themselves (top row), i.e. their memory, are shown. Also, for instantaneous links, the sum of the correctly directed and unknown links is shown. Looking at the top row, we see that SPG has a long memory in many models, with significant links of up to a 5 year lag (lag-5) in more than five models. SSS, MLD, and Rho have substantially shorter memory, whereas SubT memory is two years in most models.

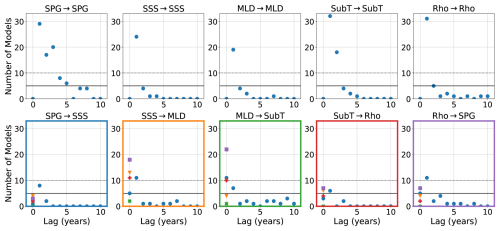

Figure 4 The number of models (out of 32) for which a significant link is found (at the 5 % level) for lags of up to 10 years. The top row shows the link of each variable to itself, whereas the bottom row shows the theoretical links. Blue circles indicate the number of directed links following the Born model (Fig. 1). For instantaneous links, orange triangles show links directed in the opposite direction and both green crosses and red pluses represent links for which the direction could not be determined, either because the orientation rules could not be applied or because they conflicted, respectively. Purple squares give the number of models with either a correctly directed or unoriented (unknown) link, i.e. the sum of all links except those in the opposite direction.

For the links of the proposed subpolar gyre variability mechanism (B), we find that the SPG→SSS link is absent in 22 out of the 32 models (either at lag-0 or lag-1), especially when instantaneous causation is concerned (only three models, one of which also has a link at lag-1). At lag-1, eight models show a significant link. The SSS→MLD link is correctly represented in 23 models, either instantaneous or at lag-1 (or both), with 13 models indicating an unknown direction for the instantaneous link. Here, 13 models show a link in the opposite direction (some with a lag-1 link in the right direction), indicating that these two variables are strongly connected in models. The instantaneous MLD→SubT link is also found in many models; in this case 22, of which half are unoriented. At lag-1, seven models find a significant link. The SubT→Rho link is not present in many models; only seven models show a correctly directed or unoriented instantaneous link, and six models indicate a significant link at lag-1. Lastly, the Rho→SPG link is found in seven more models than the SPG→SSS link, with 11 models (out of the 17), indicating lag-1 to be significant. In total, there are six models that have both links with SPG as significant.

All but one model capture at least one step of the process (B). Only for CanESM5-1 is no link found to be significant. This model shows very little convection in the Labrador Sea. The best captured links are SSS→MLD and MLD→SubT, which are found in 23 and 27 CMIP6 models, respectively. The links to and from SPG are found in only 17 and 10 models, respectively. This is expected, as this connection relies on the modelling of advection, which is dependent on the parameterisation used (Griffies, 2018; Small et al., 2020). The SPG→SSS link at longer lag is not found. There is one model, CESM2, that captures all links (except the lagged one), which will be discussed in more detail in the following section.

4.2 Causal effect

To compute the causal effect for the links, we need to set the lags at which they are considered. If more than five models indicate a link at a certain lag to be significant, it is included for the computation of the causal effect. This means that for all theoretical links between variables, we take into account both instantaneous and lag-1 links, except for SPG→SSS, where only links at lag-1 are considered. Furthermore, links from SSS, MLD, and Rho to themselves at lag-1 are used, while for SubT, lag-2 is considered in addition. For SPG, lags up to 5 years are taken into account.

In Fig. 5, the causal effect of each link is shown for models with and without that link being significant following the causal discovery step (values for individual models are given in Fig. S5 in the Supplement). Distinguishing between significant and non-significant models allows us to separate the models in which we do expect to find the relevant dynamics from those in which we do not (e.g. because they show little convection in the Labrador Sea). For the instantaneous SSS→MLD link (orange violins), all (significant) models identify the correct sign, with an increase in salinity leading to a deeper mixed layer. This is in line with the results found for the mechanisms of convection discussed in Sect. 3. Also, for the instantaneous MLD→SubT link (green violins), most significant models identify the right direction, with an increase in MLD leading to a cooling of SubT. At lag-1, both the SSS→MLD and MLD→SubT links are found with the opposite sign in most models where they are significant, contrary to the theoretical model. This sign change is only found when taking into account the longer memory (beyond lag-1) in SPG and SubT, meaning its absence in the theoretical model is likely due to the use of correlation to establish the links (Born and Mignot, 2012). Physically, these links could be related to the atmospheric dampening of the surface signal, which is not included.

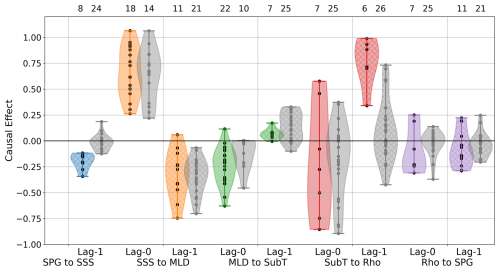

Figure 5 The causal effect for each of the links. The violins in colour represent the distribution across the models for which the link is significant, with the black dots indicating the individual model values. The grey violins and grey dots represent the non-significant results. Hatching indicates the causal effect at lag-1. The numbers at the top give the number of models for which that link is significant and those for which it is not significant at the 5 % level.

For the proposed SubT→Rho link (red violins), models disagree on the sign and value of the instantaneous link, with a large spread for the significant models. We find a positive link at lag-1, whereas in the theoretical model the link is negative, with a cooling of SubT leading to an increase in Rho. This is likely due to the different effects of mixing on the surface density versus the density at depth. While the mixing of the water column leads to an increase in density at depth, it actually reduces the density at the surface, corresponding to the positive link found at lag-1.

The sign of the SPG→SSS link (blue violin) is very consistent in the models where it is found to be significant (but not overall). For those models, it shows a negative feedback, with an increase in SPG leading to a reduction in SSS a year later. The Rho→SPG link (purple violins) is less consistent, but most significant models indicate that a reduction in Rho leads to a strengthening of SPG, either instantaneous or at lag-1. This is not in agreement with the theoretical mechanism, where an increase in density strengthens the gyre circulation. It indicates that the models do not capture the feedback of the density in the gyre centre to its strength. The Rho→SPG link is based on thermal wind balance (Born and Stocker, 2014), with an increase in the density difference between the edge and centre of the gyre, increasing the strength of the circulation. This absence could be related to the use of the barotropic streamfunction as a measure of the gyre strength, which does not fully capture the baroclinic nature of the link. It also hints at there being other processes in CMIP6 models, such as the atmospheric circulation, that act as confounding factors.

Since both links through Rho are identified with the opposite sign of the theoretical model, it is valuable to study the system when leaving out Rho, i.e. the hypothesis of a causal link from SubT to SPG. Causally, the hypothesis omitting Rho is equivalent to the studied system (Pearl et al., 2016), although the effect on lag times is hard to predict. Studying this system (see Figs. S7–S9 in the Supplement) shows large disagreement between models on the sign of the SubT→SPG link at lags of 1 and 2 years. At lag-1, slightly more significant models indicate a positive link, i.e. a cooling of SubT leading to a weakening of the SPG, which is the opposite effect of the theoretical mechanism. However, at lag-2, slightly more models show a negative effect, in line with the hypothesis. Thus, the models do not agree on the SubT→SPG link, whether taking into account the step through Rho or not.

There is one model, CESM2, for which each link is significant, either instantaneous or at lag-1. For the SSS→MLD→SubT links, CESM2 indicates significant instantaneous links, whereas for SubT→Rho→SPG, the significant links are found at lag-1. The signs of the links to and from Rho both have the opposite sign to the theoretical mechanism, which retains the hypothesised negative feedback loop. When omitting Rho, CESM2 has a significant negative SubT→SPG link at lag-2, in line with the negative feedback loop.

If we do not take into account the significance of the links but only consider the causal effect, four other models have the same sign as CESM2 for all links; CESM-FV2, CESM2-WACCM, MRI-ESM2-0, and NorESM2-LM. The models in which Swingedouw et al. (2021) found abrupt temperature shifts in the SPG region are CESM2-WACCM, MRI-ESM2-0, and NorESM2-LM. This identifies a clear connection between the presence of mechanism (B) and the possibility of abrupt shifts in CMIP6 models. That not all links in these models are found to be significant is likely due to internal variability obscuring the signal. The key links that set this set of models apart are those to and from the SPG strength. When constraining these three links only, i.e. negative SPG→SSS and Rho→SPG positive at lag-0 and negative at lag-1, we find this set of five models together with ACCESS-CM2. In this last model, the SubT→Rho link at lag-1 is negative instead of positive, and it is unclear what this means for the possibility of an abrupt shift in the SPG, as this model was not considered in Swingedouw et al. (2021).

5 Conclusions

We have studied the mechanisms of SPG tipping behaviour in CMIP6 models. We started by considering the local mechanisms of convection (A) (Fig. 1), for which we found that, in line with observations, either an increase in salinity or a decrease in temperature causes convection (mechanism (A₁)), i.e. an increase in mixed layer depth. Here, the effect of salinity is found to be slightly stronger than that of temperature. In contrast to the clear representation of these causes of convection, the feedback of mixed layer depth to the sea surface temperature is not identified correctly in CMIP6 models (mechanism (A₂)). This is due to the lack of causal sufficiency of the tested hypothesis, with common drivers of temperature and salinity not being included. There are several candidates for common drivers, for example, the ocean circulation (e.g. Kim et al., 2021) or the state of the atmosphere (e.g. Khatri et al., 2022), which in turn also interact with each other. Therefore, we turned to testing mechanism (B), which is causally sufficient. This mechanism, proposed by Born and Mignot (2012), can describe bistability and thus tipping of subpolar gyre convection. It includes a feedback between salinity and the gyre circulation, which is in part due to eddies. Instead of focusing on the location where individual models show convection, in this part of the analysis we consider only the Labrador Sea.

We verified whether the links between the variables in mechanism (B) are well represented in CMIP6 models. The proposed mechanism, shown in Fig. 1, contains a negative feedback loop on short timescales and a positive one on longer timescales. The interaction between salinity, mixed layer depth, and the subsurface temperature is relatively well captured in many CMIP6 models. This shows that convection is indeed driven by surface density and is in line with the results for the local convection mechanism (A₁). The feedbacks between the subsurface temperature, density, and strength of the subpolar gyre are present in fewer models, often with conflicting signs between models. The positive link from the temperature at depth to density at the surface can physically be explained by the upward mixing of lower-density water. The mostly negative link from density to the strength of the gyre is not in line with the theoretical mechanism, indicating that models do not capture the expected interaction between density and the gyre circulation. One reason for not identifying all links is that some models do not show (deep) convection in the Labrador Sea, in particular the CanESM5 and EC-Earth models. However, even for models with a link being significant, we do not identify all links of mechanism (B). In a subset of models, we identified the expected links to and from the subpolar gyre strength, although only in CESM2 these links are all significant. This subset of models includes those models in which abrupt temperature shifts in the subpolar gyre region have been identified (Swingedouw et al., 2021), indicating that this mechanism likely plays a crucial role in abrupt shifts in the subpolar gyre.

The lagged feedback from the gyre circulation to salinity is not found in any of the models, and as a consequence, the delayed positive feedback loop is missing. The long memory of the circulation strength can (partly) explain this, as lagged regression (used in Born and Mignot, 2012) can lead to identifying too many significant relationships (McGraw and Barnes, 2018). At a lag of 2 years, we find a weakening effect of the circulation strength on itself in most significant models (shown in Fig. S6 in the Supplement), which would act to increase the salinity on a timescale of around 3 years, i.e. a positive feedback loop. This is a shorter timescale than that identified by Born and Mignot (2012), which may be due to the gyre memory biasing their analysis. The gyre memory can be explained by the transport of waters from outside the Labrador Sea, which retain similar properties for multiple years, as seen during the Great Salinity Anomalies (Gelderloos et al., 2012). In CESM2, this lagged link of the gyre strength is found to be significant, providing evidence for both negative and delayed positive feedback loops being present in this model. Out of the set of models that correctly represent the links to the gyre-strength, CESM-FV2 and MRI-ESM2-0 also show a lagged gyre-strength link, but CESM2-WACCM and NorESM2-LM do not. This does not necessarily mean that the links are absent, as noise may have reduced their significance.

The link that contradicts the bistability mechanism (B) the most is that from density to the gyre strength. This is one of the links that relies heavily on a good parameterisation of heat and salt transport by ocean eddies, and hence it is not surprising that this interaction is not identified clearly. All models considered here have too coarse a resolution to explicitly resolve ocean eddies, and hence we did not find a discernible effect of model resolution on the identification and strength of this link. Another partial explanation is that the barotropic streamfunction, which is used as a measure of the strength of the subpolar gyre, is not the most suitable variable to use for the interaction. The streamfunction is computed by vertical integration, which removes baroclinic effects, whereas it is exactly these baroclinic effects that are relevant for the positive feedback loop (Born and Stocker, 2014). Together, these factors likely explain the absence of this interaction in most CMIP6 models.

Despite the limitation, it is encouraging to see that the models that best represent mechanism (B) are also the models in which abrupt shifts in the subpolar gyre region are found (Swingedouw et al., 2021). It is important to better understand what sets these models apart to improve our knowledge of potential bistability in the subpolar gyre and the likelihood of abrupt shifts in this region. Exploring the mechanism in eddy-rich models would be a valuable direction for future research to determine whether this improves the link between density and the subpolar gyre strength. Furthermore, investigating these mechanisms in an ocean-only model could clarify the relevance of the atmosphere for these interactions, although one would have to be mindful of the applied atmospheric forcing. Another way to study this would be to include, for example, the North Atlantic Oscillation as a variable forcing the surface variables in mechanism (B) to see the impact this has on the causal links. Moreover, future research could also examine the impact of global warming on the variability mechanism.

The PCMCI method for causal inference used in this study has proven suitable for climate model datasets (Kretschmer et al., 2016; Di Capua et al., 2020; Pfleiderer et al., 2020), but it is not the only method that can be used to study causality using time series data. Alternative methods include transfer entropy (Schreiber, 2000), conditional mutual information (Paluš et al., 2001), and convergent cross mapping (Sugihara et al., 2012; Van Nes et al., 2015). Docquier et al. (2024) compared the PCMCI method used here with the Liang–Kleeman information flow (Liang and Kleeman, 2005), finding that both outperform standard correlation and have a comparable level of skill for the number of variables used here. With all these methods, one needs to keep in mind that certain assumptions are made to derive the resulting causal links and that these assumptions must be verified to ensure that the results are robust. Such robustness analyses are made more complicated by, for example, the lack of availability of relevant output variables in CMIP6 models.

The application of causal methods to investigate mechanisms of bistability can be extended to other tipping systems when the mechanism is known (or hypothesised), as long as the hypothesised mechanism is causally sufficient. Examples include the Atlantic Meridional Overturning Circulation (AMOC) and the Amazon Rainforest. Another area in which these methods can be applied is the interaction between different tipping elements. Building on the results presented here, the presence of a link between the subpolar gyre and AMOC could be investigated. The subpolar gyre is one of the regions where convection takes place and connects to the overturning circulation. The exact nature of this interaction and the relevance of the Labrador Sea compared with other convection regions, such as the Irminger or Nordic Seas, are still open questions. Observational data indicate that the majority of the transport related to the overturning occurs through the eastern part of the subpolar Atlantic (Lozier et al., 2019). On the other hand, the deepest convection occurs in the Labrador Sea, indicating its relevance for bringing saline surface water to depth (Buckley et al., 2023). A recent study indicates the importance of models that resolve the smaller scales to better represent the spatial heterogeneity of the ocean circulation and its relevance to convection (Gou et al., 2024). To narrow down the large uncertainty, including that in model performance, causal techniques can be used to better understand which mechanisms are at play.
